TOP DISCHARGE AND PERFORMANCE. Pumps are ideal for dewatering constructions sites, mines, circulating fountain water, or for all around use in industrial plants and utilities.

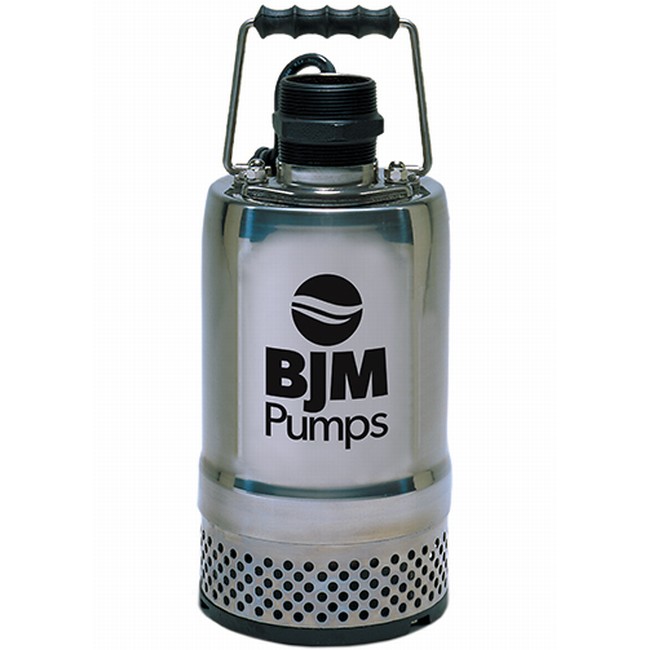

BJM Pump Model No. R400-115

  • Top Discharge: allows for superior cooling of motor and provides a slim line design.
  • Longer Power Cord: Standard 33ft. power cord on pumps ½ HP and below and 50ft. on pumps 1HP and above.
  • 304SS Motor Housing: Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
  • Three Seal Motor Protection: Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic*. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
  • More Motor Protection: Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
  • Tough Pump Construction: Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components*.

Flow Sheet

Tools made in the USA


GENERAL DATA
MAX. FLOW: GPM 66
MAX. HEAD: ft 35'
PUMP TYPE Elec. Submersible, Top Discharge
STRAINER OPENING 3/16"
DISCHARGE SIZE 2" NPT
WEIGHT 33 lbs

ELECTRICAL/MOTOR DATA
MOTOR RATING: HP 0.5
MOTOR RPM 3450
MOTOR INSULATION CLASS F
MOTOR SERVICE FACTOR 1.1
VOLTAGE 115, 1PH-60Hz
CURRENT F.L.A. 6
MOTOR PROTECTION Thermal Breaker
POWER CORD: GAGE; LENGTH 16/3; 33'
MAXIMUM LIQUID TEMPERATURE 104 F
