Rugged 360-degree Laser Display Receiver with Patented Angle Compensation Indicator

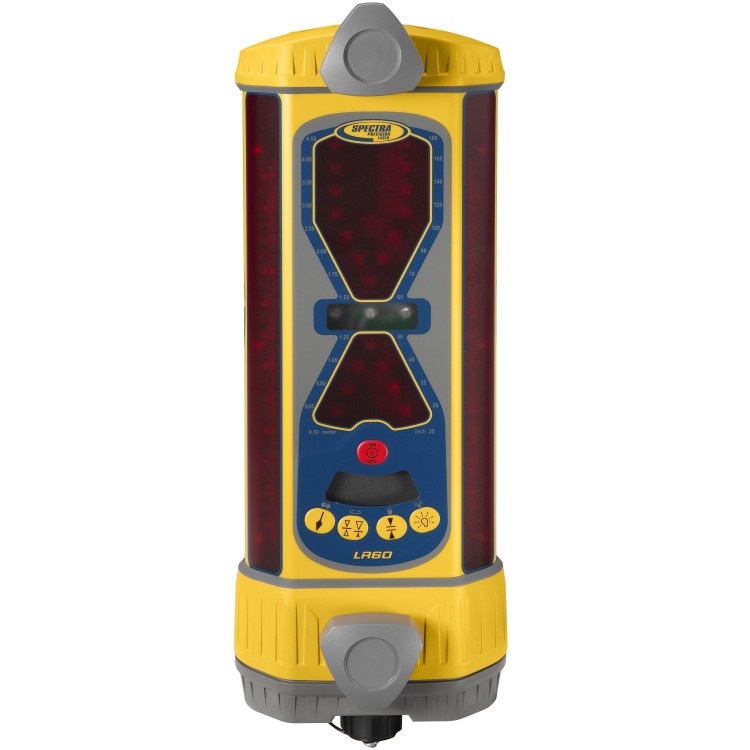

The Spectra Precision® Laser LR60 Laser Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades. For excavators and backhoes, the LR60 laser receiver features patented Angle Compensation which automatically calculates and corrects the grade display for the angle of the dipper arm.

The easy-to-use LR60 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR60 receiver withstands all weather environments.

Spectra Precision® Laser Display Systems let you spend less time walking the job site … and more time in the cab being productive. Using a grade display receiver guides the operator to the desired elevation or depth without a grade checker, you improve accuracy and increase profits. The operator optimizes machine time, effectiveness, and efficiency. You can use these rugged, highly flexible laser display systems on a wide range of machines. The receivers are portable and easily moved from machine to machine for greater operator and machine efficiency.

LR60 Used on dozers, backhoes, excavators and levelers. Features built-in blade tilt, excavator boom plumb indicator plus angle compensation indicator

• Patented Angle Compensation Indicator automatically calculates and corrects the grade display for the angle of the dipper arm.
• Check grade with the dipper arm extended or retracted up to 30 degrees.
• Built-in plumb indicator for fast, accurate grade checking.
• Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
• Offset on-grade for productive excavation.
• Up to nine channels of grade information plus directional out-of-beam indicators.
• Four selectable accuracies for each on-grade location.

LR60-1 Includes:

• Jobsite tough carrying case
• Alkaline Batterys

Spectra Precision Laser Machine Display Receiver Features and Benefits

• Versatile, 360-Degree Reception: Works with all types of rotating lasers and on all types of machinery for fast, no-hassle setup.
• Multiple Accuracy Choices: Offers maximum flexibility to meet jobsite requirements, from rough grading to final finishing.
• Adjustable, Ultra-bright LED with Green On-Grade Display: Provides user selectable, easy-tosee display to match ambient lighting conditions.o final finishing
• Long Battery Life: Keeps your machine working.
• Out-of-Laser Beam Indication: Selectable on /off indicator directs which way to move and get back in the beam.
• Automatic Shut-off: Conserves battery life when the receiver is not in use.
• Low Battery Warning: Provides advance notice when battery replacement is required to keep workflow moving.
• Two-Year Warranty: Reliability you can count on.
• Rugged & Waterproof: Durable polycarbonate and aluminum die cast housings withstand all weather and construction site conditions. Internal isolating shock mounts protect the electronics.
