• Price $1,128.00
  • Product Code: T24152
  • Quantity in Basket: None
  • Availability In Stock

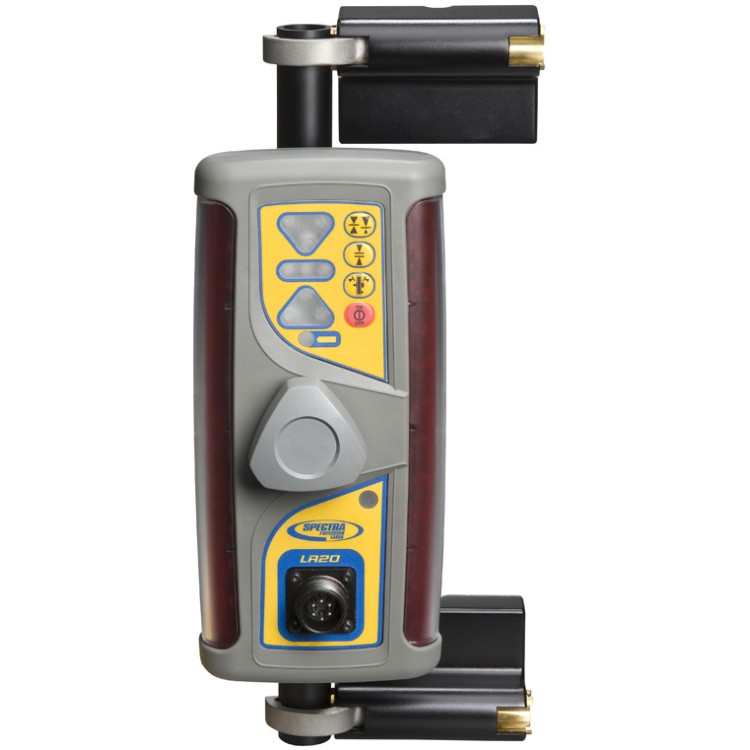

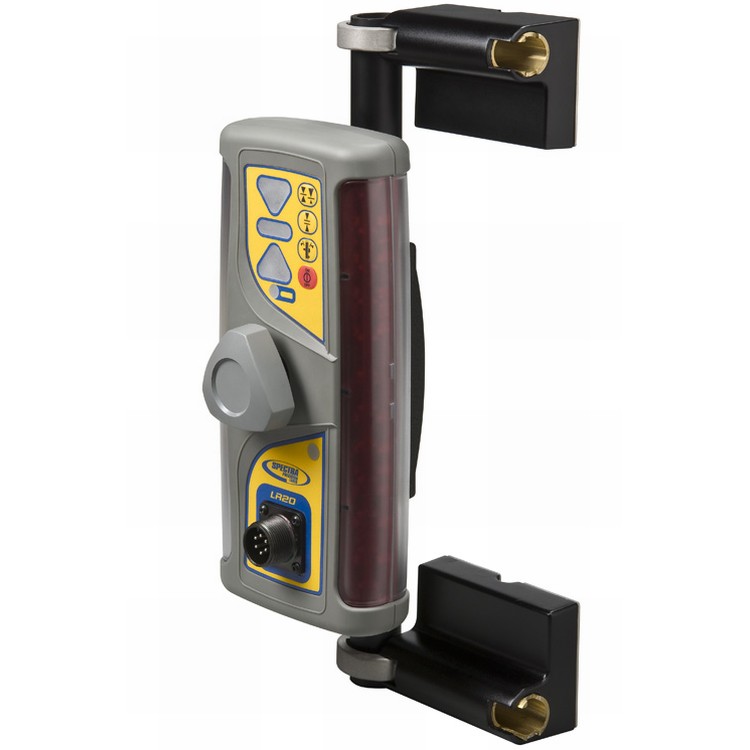

Trimble LR20 Laser Machine Display Receiver for improved productivity on compact machines.

The Spectra Precision® LR20 laser receivers allow compact machines to achieve tighter tolerances without the need for a grade checker. Now smaller machines can be more productive while improving accuracy and saving material usage costs. Designed specifically for the cost-conscious site prep contractor, these receivers offer a very attractive return on investment by improving the productivity and material usage costs of compact machines. From simple depth and slope display to elevation control, you can broaden the scope of job applications and very easily move the laser receivers across their fleet of compact machines.

These rugged units can be easily moved from machine to machine with features and setup options for multiple applications and specifications. The 360-degree laser reception height ensures maximum laser control across the site. The LR20 Laser Machine Display Receiver is as a standalone display receiver for mini excavators, backhoes and scrapers, skid steer attachments, box blades, pulled scrapers and small dozers. It is powered NiMH batteries and direct machine power.

Spectra Precision Laser Machine Display Receiver Features and Benefits

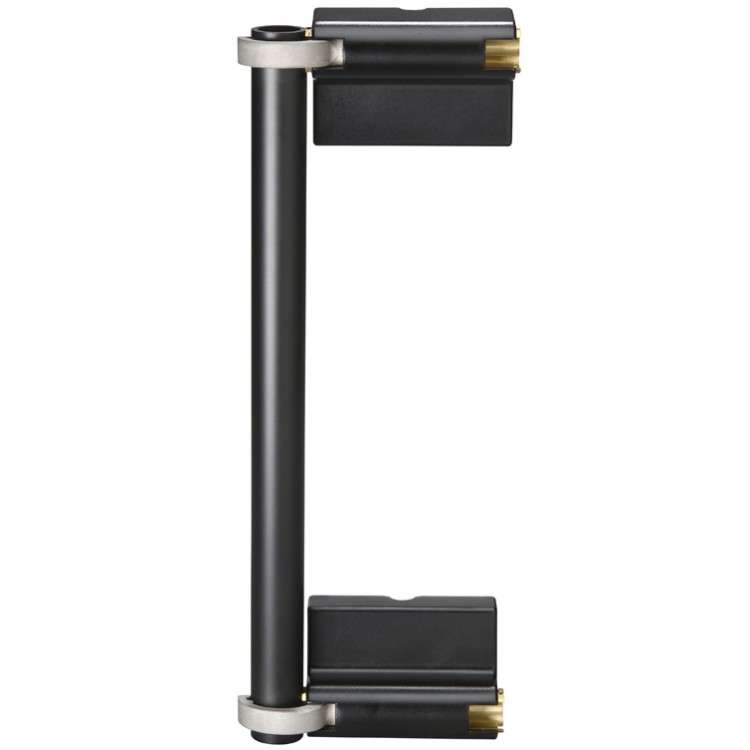

  • Designed to be used on smaller machines - LR20-1 comes with smaller adjustable magnetic mount ideal for mini-excavators
  • 360 degree reception and 8 inch (203 mm) vertical reception provide large working area and range making it easier to get to desired elevation without over-digging
  • Rugged housing allows the receiver to be used in the toughest jobsite conditions
  • Super bright LED display providing easily visible depth and elevation control to the user
  • Easy to use with a simple push button set-up
  • Ideal for both grading and excavating
  • Built-in plumb indication makes grade checking simple and easy and avoids errors


  • Landscaping, building pads, sports fields, concrete flatwork, tennis courts

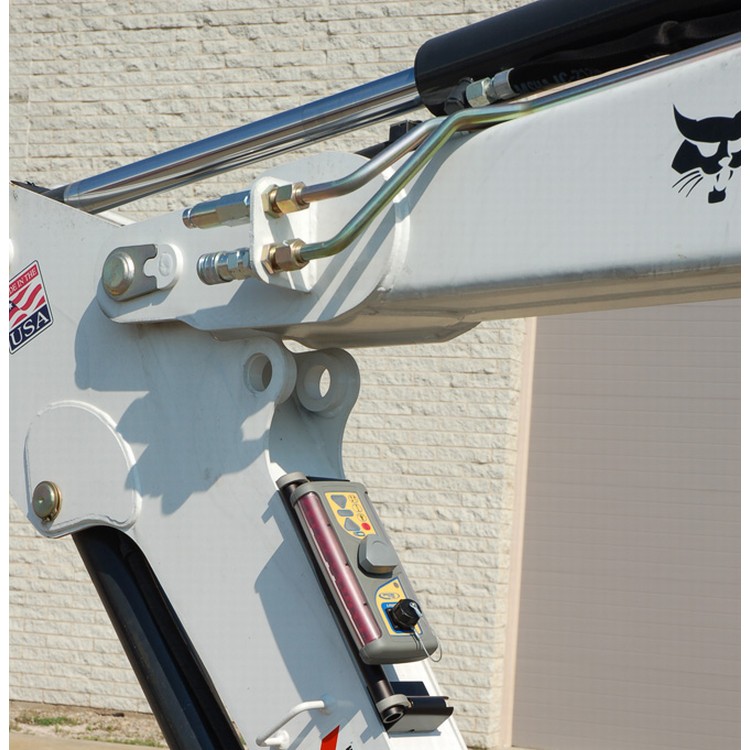

  • Ideal for mini-excavators
  • Footers, storm drains, utility, sewage
  • General construction grade and depth control

LR20-1 Includes:

  • Jobsite tough carrying case
  • NiMH Batteries
  • 110v Battery Charger
  • Magnetic Mount
