Oztec 2.4 OZ Concrete Vibrator Package Package includes

• Oztec 2.4 OZ Concrete Vibrator 2.25 HP w/Quick Disconnect
• 2" x 14" Rubber Head
• 14' Flexible Shaft

Job Site Proven

Tough, Rugged, and Durable! Oztec's design has been extensively tested and used on-the-job for over thirty years. The wrap around protective frame and shock absorbers effectively protect Oztec motors from damage even when dropped or thrown from heights of over six feet.

Oztec Electric motors are manufactured to exacting specifications to withstand the rough day to day abuses associated with construction sites. Lightweight, compact and fitted with our comfortable adjustable shoulder strap, this one man power unit will speed through the stiffest concrete. All Oztec Power Units (gas and electric) run vibrator heads 11,000 to 12,000 vpm. They never drop below 10,000vpm even in the lowest slump concrete (near 0) when maximum head size specifications are followed.

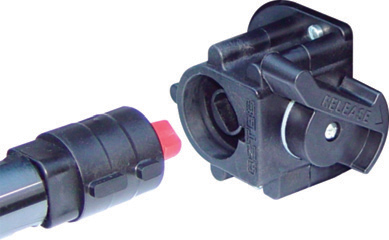

Oztec power units come standard with the Quick Disconnect "QD" system. Changing shafts and heads on the job is a snap.

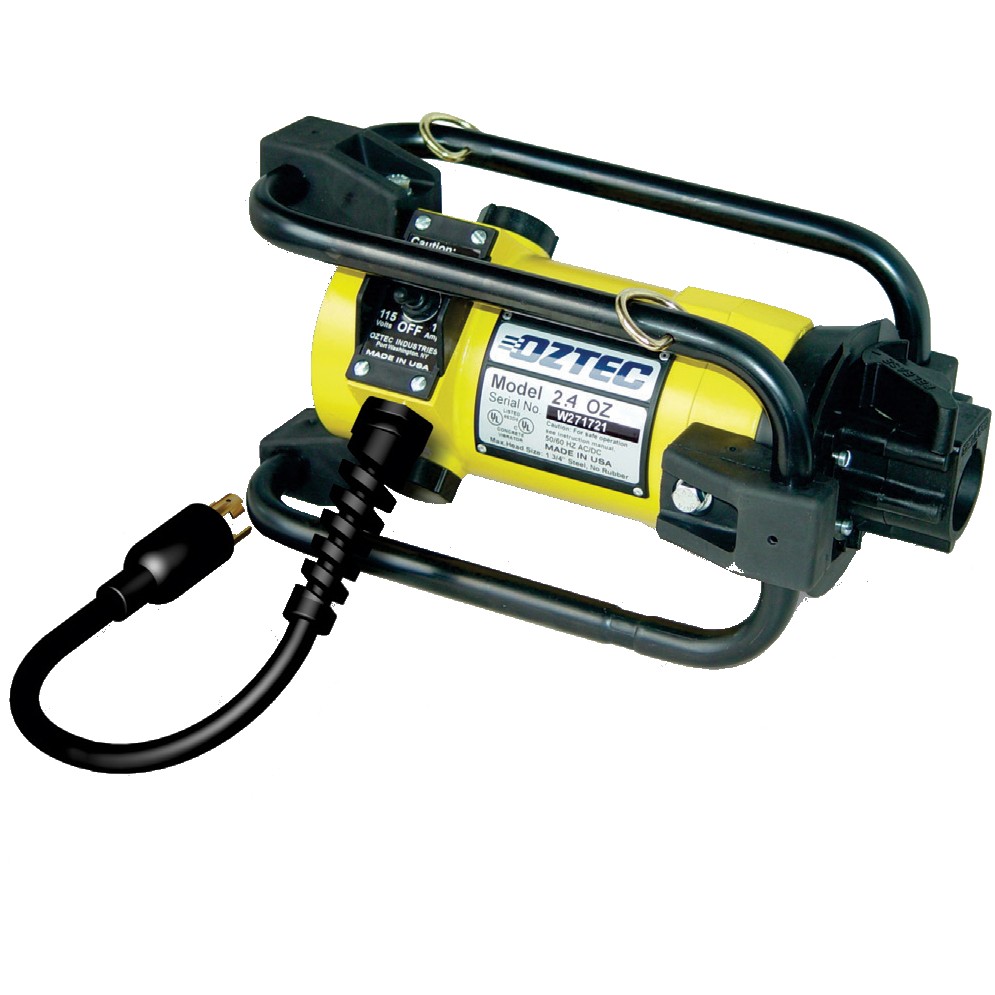

Oztec Model No. 2.4 OZ

• Withstands drops of hights over 6 feet
• Motors are manufactured to exacting specifications to withstand the rough day to day abuses
• Runs vibrator heads 11,000 to 12,000 vpm
• Comes standard with the Quick Disconnect "QD" system
• 2.25 HP Electric motor draws 17 amps
• Maximum Head Size 2" Steel 2" Rubber
• Oztec units meet all United States OSHA and Canadian safety standards

Oztec's "High Efficiency RubberHead" Outperforms any other type of vibrator

Epoxy coated rebar presents a particularly troublesome problem. Steel heads act like an electric hammer, striking any rebar or forms they contact, over 10,000 times per minute, with a force from hundreds to over 2,000 pounds per blow. Contact with a steel vibrator head of as little as one second can chip enough coating to subject the steel to deep rust. Oztec's patented High Efficiency "RubberHead " vibrator head not only meets DOT non-metal head specifications for protecting coated rebar and expensive forms, but exhibit some very special and unique properties. The High Efficiency Rubber Head urethane dimpled construction sends strong shock waves off the entire length of the head, with a larger radius of action, producing denser concrete with less voids to patch.

Why the Oztec "RubberHead TM " outperforms any other type of Vibrator.

(a.) When a smooth vibrator head (round, square or any other shape) is lowered into a relatively stiff concrete batch, the front or nose of the vibrator drills a hole. It pushes away concrete faster than it can return. Result, shock waves produced mostly from the vibrator's front end.

(b.) Oztec's patented "RubberHead" has a large number of openings which allow wet concrete to cool the inner shell. These openings act like "suction cups", which keeps concrete in contact with the entire length of the vibrator head, sending strong shock waves into the mass.

Smooth vibrator head	Oztec's patented "RubberHead "

Eliminates damage to epoxy coated rebar caused by a standard steel vibrator head

Oztec's patented High Efficiency RubberHead

• Will outperform any other type of vibrator…round, square, hi-cycle, etc…Any Type!
• Will protect epoxy coated rebar and expensive forms.
• Is outstanding in low slump (to "0" slump) concrete.
• Essential in large pours of very stiff concrete.
• Makes concrete denser with less voids to patch.
• Vibrates at 12,000vpm, never drops below 10,500vpm when lowered deep into low slump concrete.
• Provides Superior Action.
• Is an absolute must for Architectural concrete where cosmetic surfaces are essential.
• All Oztec vibrators meet or exceed ACI specification # 309

Oztec Model No. HR 188 OZ
