Falltech Contractor Leading Edge SRLs provide functionality without compromising leading edge hazard safety. They deliver reliable performance and outstanding value

The Falltech Contractor Leading Edge SRD is designed to provide the highest level of saftey when working around unprotected sides and edges.

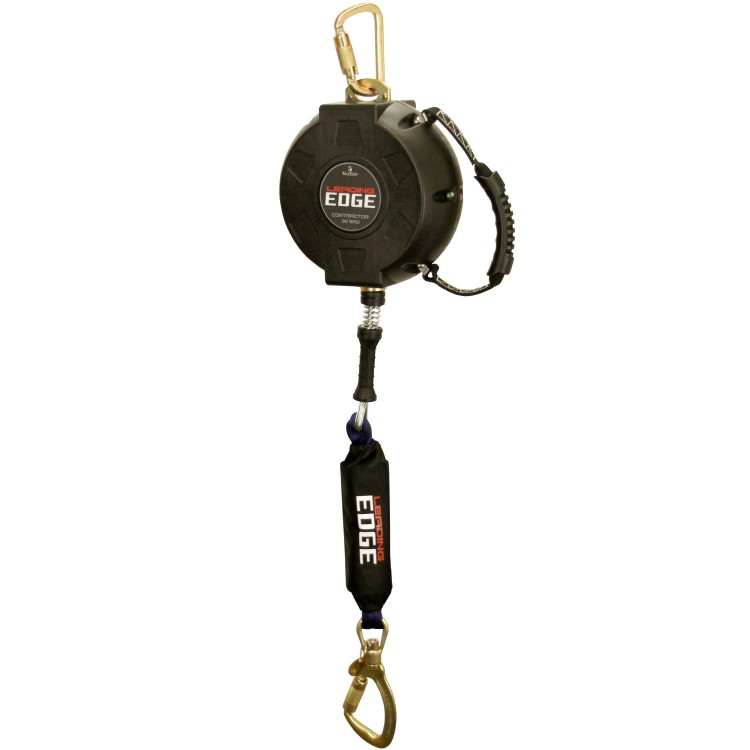

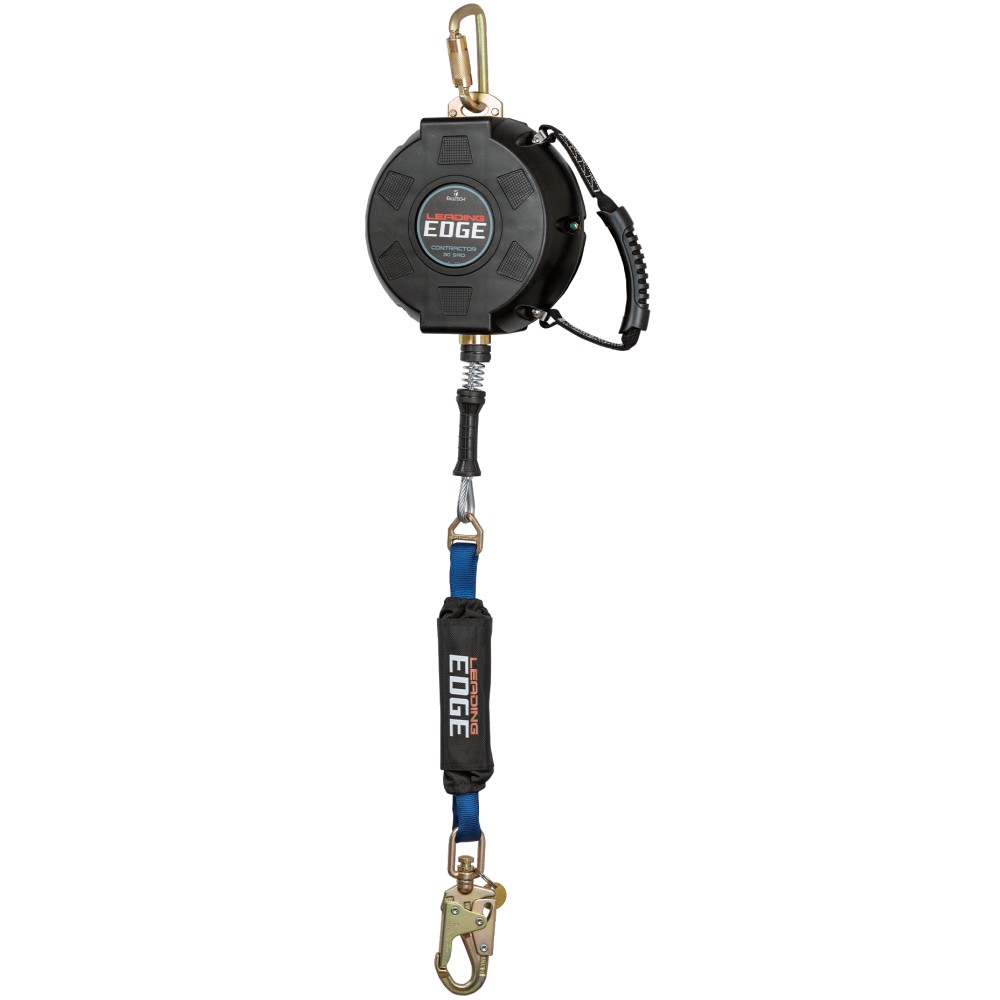

Falltech Model No. 727630LE

• May be used as a traditional SRD for overhead anchorage options or in below harness D-ring anchorage conditions
• 7/32 Galvanized steel cable for added cut resistance
• Dual energy absorber system – internal inertial brake and external shock pack
• Designed to reduce the risk of cable failure when contacting an edge during a fall event
• ANSI Z359.13 compliant external energy absorber to reduce impact forces during edge contact in a fall event
• Complies with ANSI Z359.14-2021 Class 2 SRL

Specifications

• Cable: 7/32" galvanized steel; 3,600 lb min. static strength
• Energy Absorber: Polyester tear-away
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• ANSI SRL Class/Type: Class 2 SRL
• Max. Arrest Distance 42"
• ANSI User Capacity 130 to 310 lb max.

ANSI Z359.14-2021 SRD Types and Classes Effective on August 1, 2023

Both types and classes were overhauled in 2021: "types" are SRL, SRL-P for personal devices meant to be installed on the user's full body harness, or SRL-R for devices with rescue/retrieval functions, and "classes" are Class 1 or Class 2. The SRD class is now applied to acceptable anchorage locations. Class 1 devices are suitable for at or above dorsal D-ring anchorage locations. Class 2 devices are suitable for above, at, or up to 5 feet below the dorsal D-ring anchorage locations AND must be leading edge rated. So, if your jobsite has edge exposures and you need a leading edge SRL or SRL-LE, you will be looking for a Class 2 device in compliance with ANSI/ASSP Z359.14-2021!
