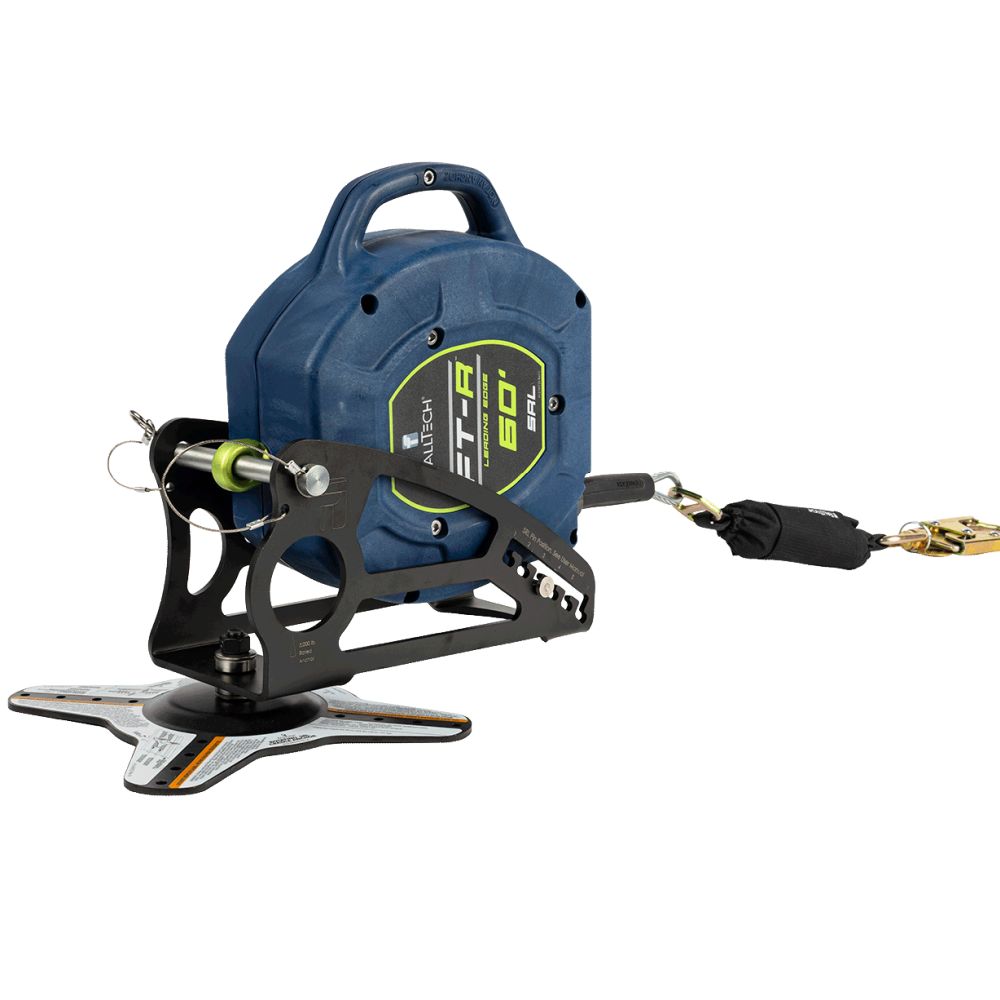

The FallTech Rotating SRL Cradle Anchor gives you a smarter safer and more efficient way to deploy and protect you and your self-retracting lifelines on the jobsite.

Precision-built for metal decking, wood roof structures, and other surfaces this new anchor keeps SRLs elevated, aligned, and easy to maneuver eliminating drag reducing wear and extending service life. With a full 360 degrees of mobility and a low-profile design it gives you the freedom to move freely and work effectively without compromising your safety.

This anchor installs easily on wood roof structures, steel decking, and Z-purlins. Fully compatible with all FallTech Class 2 SRLs count on the Rotating SRL Cradle Anchor to keep you safe and productive every step of the way.

Falltech Model No. 7396

• 10" x 10" anchoring base plate with adjustable cradle that gives you a solid connection point and secure installation.
• 360-degree swivel rotation allows the lifeline to track with the worker, delivering full freedom of movement without tangling.
• Integrated secondary D-ring attachment point functions as a standalone anchor, offering additional flexibility for personal fall arrest when an SRL isn't in place.
• Rugged, low-profile build with sealed bearings resists corrosion, reduces leverage forces, and extends SRL lifespan.
• Installs easily on wood roofs, steel decking, and Z-purlins.
• Rated to support workers up to 310 lbs.
• Fully compatible with all FallTech Class 2 SRLs
• Includes 16 screws for installation.
• Complies with ANSI Z359.18-2017, OSHA 1910.140, and OSHA 1926.502.

Specifications

• Base Plate and Cradle: Plated Alloy Steel
• D-Ring Plated Alloy steel; 3,600 lb min. static strength
