Reed Tool Mechanical Hot Tapping Machine kit makes branch connections through 3/4” to 4” valves on any appropriately sized mainline for most piping materials. With the right hole saw, these machines connect to chilled and hot water systems up to 300 psi and steam systems up to 15 psi without a shutdown of service This process is known as hot tapping.  The machine works for mild steel, galvanized steel, stainless steel, copper, brass and aluminum pipe.  Mechanical Hot Tapping Machine drills through the pipe wall via fittings inserted into the service saddle or thread-o-let. The machine eliminates the need to shut down, drain, cut, refit and refill piping systems.

Hot Tapping makes it possible to safely tie into a pressurized system, by drilling into the pipe, while it is still in operation. This is done on a main line to attach a branch connection to a pipe to create a new supply line. The term hot tapping refers to fact the pipe is being drilled under pressure. The operation does not produce threads in the pipe; it is strictly a drilling operation.

Reed Tool Model No. DM3MECH

• Hot tap tool for piping, fittings and valves with NPT threads.
• Hot tap steel, copper, brass or aluminum pipe for installing branch connections from 3/4” to 4” valves.
• Pressure rated 300 psi for ambient temperatures or 15 psi for steam systems.
• Eliminates the need to shut down, drain, cut, refit and refill piping systems.
• Watertight seal to allow drilling under pressure.
• Commercial and industrial applications.

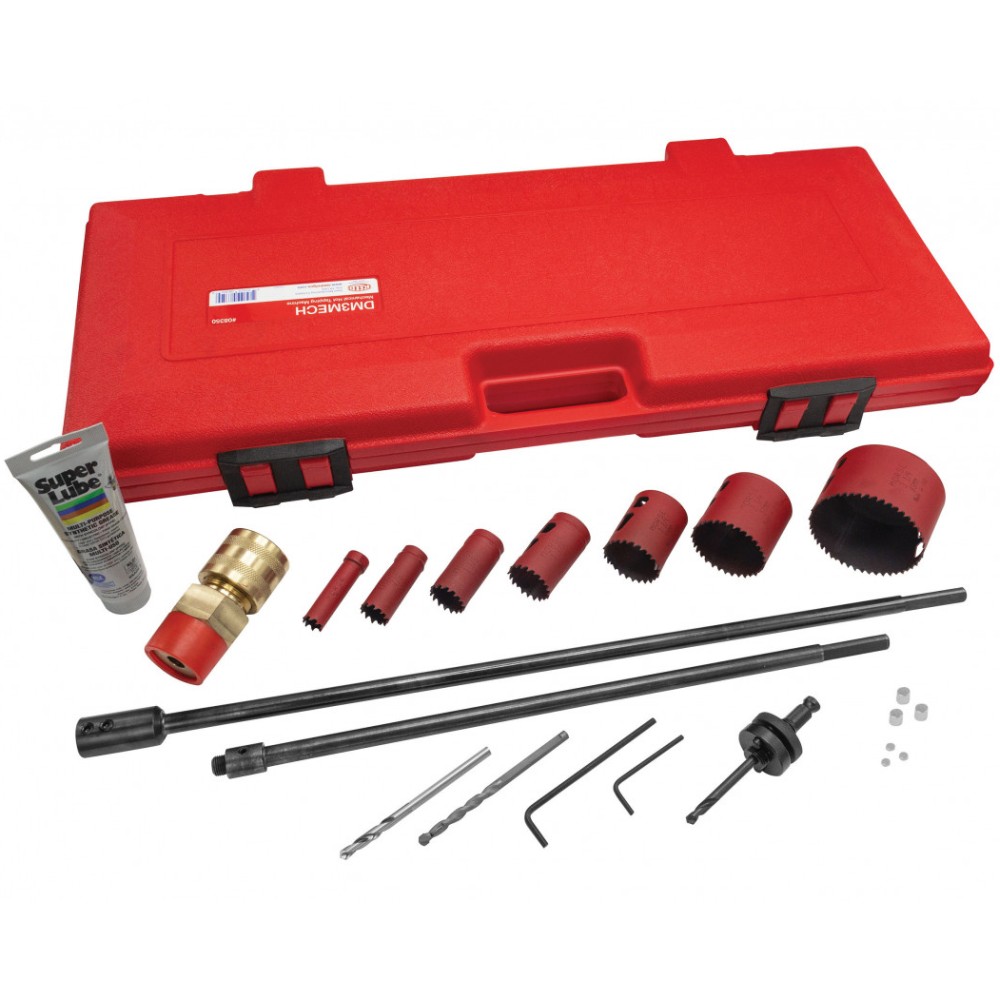

• Complete kit includes main body assembly, shafts, hole saw assortment, arbor and accessories in a storage case.
• Reed Mechanical Hot Tapping Machine is the tapping machine only with valves, saddles, fittings and piping supplied by the operator.

Kit Includes:

08358 Coupon Retainer 3/8" Diameter Magnet 3 Pack
08359 Coupon Retainer 1/4" Diameter Magnet 3 Pack
40149 5/32 Allen Wrench
40296 Hex Wrench For DMHSA/PPR
04561 Drill Bit 1/4" x 4 5/16" Long
99129 Drill Bit 1.4” Coupon Retainer
43514 Arbor
93514 24" Shaft 1/2" Diameter with Holder
93515 18" Shaft 1/2" Diameter with Sleeve
93526 Plastic Case
93527 Main Body Assembly
43500 5/8" Hole Saw
43501 7/8" Hole Saw
43502 1 1/8" Hole Saw
43503 1 3/8" Hole Saw
43504 1 3/4" Hole Saw
43505 2 1/4" Hole Saw
43506 3 1/4" Hole Saw
43512 H1 Grease (3 oz. tube)
