Reed Tool double bar PE squeeze-off tools provide two pinch points to increase squeeze confidence and yield optimal flow control.  Reed Tool offers the best designed Double Squeeze tools for stopping flow in ½” up to 6” PE pipe. User input led to features like hand grooves for lifting, reduced weight, and a controlled, low-effort squeeze.  Sliding bar handles on these manual PE pipe squeeze tools improve maneuverability in tight spaces and increase leverage for tightening. Fine-pitched thread on the feed screw allows for a consistent, smooth squeeze. Grease fittings at friction points improve performance and extend tool life. Aluminum bars are anodized or painted for protection against the elements.

All PE squeeze off tools use positive stops to prevent damage caused by over-clamping. Multiple size/SDR settings on each pair of stops provide necessary, over-squeeze protection for standard pipe sizes. Plus, color-coded stops (standard on PES6DB models and optional on PES4DB models) simplify visual alignment.

NOTE: Reed Tool strongly recommends use of the Static Grounding Device with PE Squeeze-Off Tools and Guillotine Pipe Cutters and the magnetic static grounding device on ratchet shears in all gas applications.

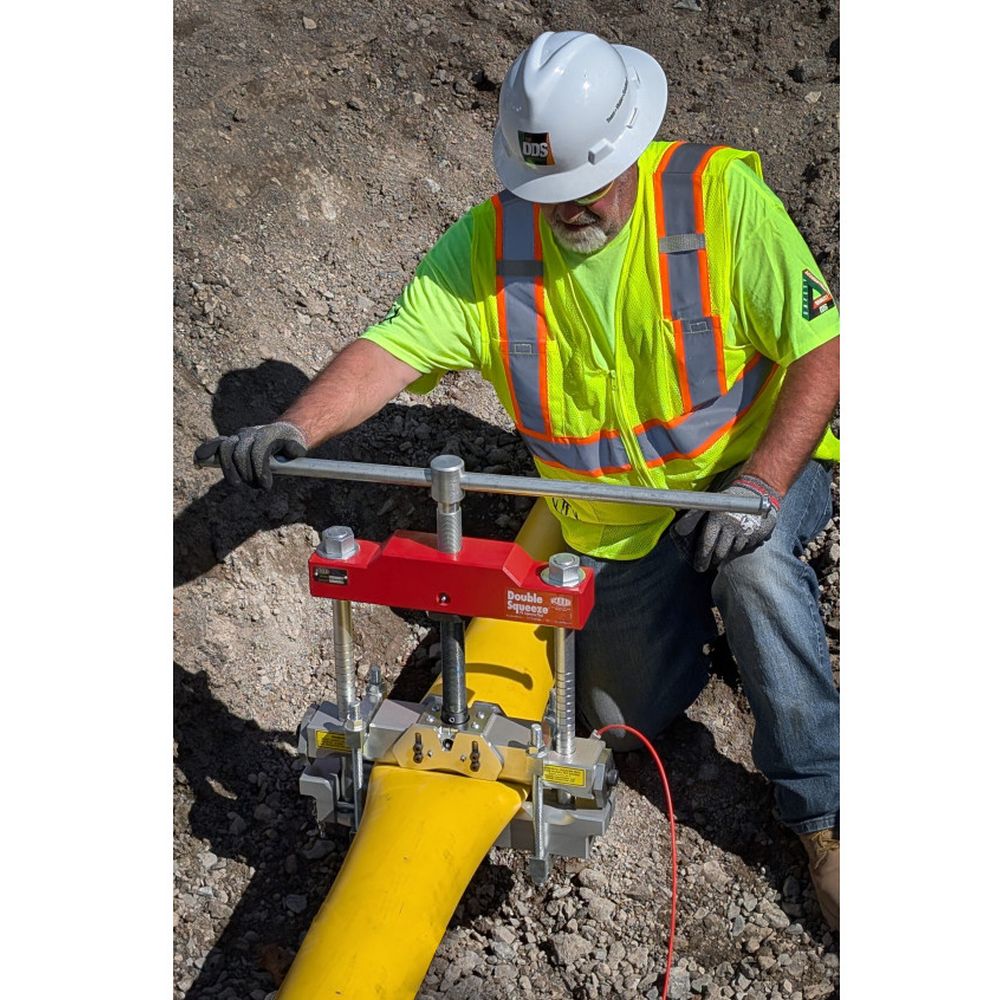

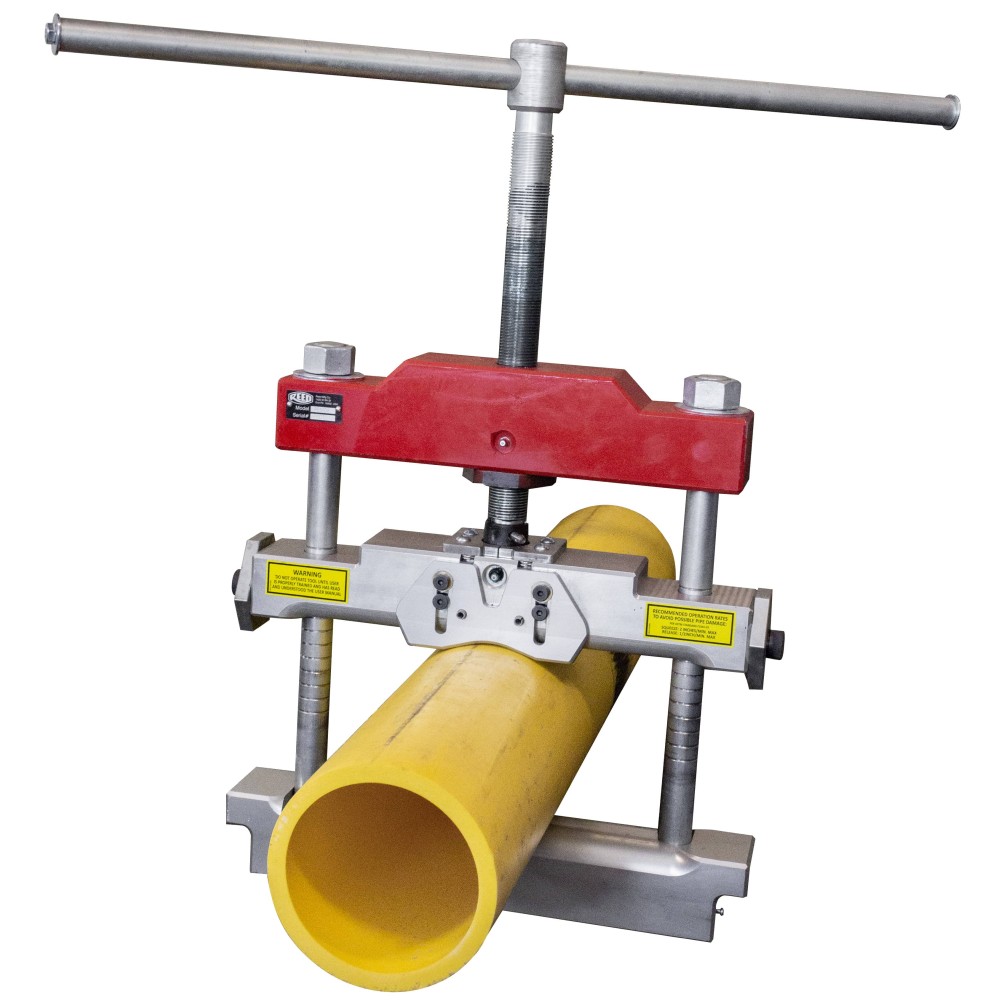

Reed Tool Model No. PES6DB

• Squeezes up to 6 inch SDR 11 with a double-bar design for optimal PE squeeze off.
• Spring-loaded centering aids increase safety by assisting the user in centering the tool on the pipe.
• Advanced ball bearing thrust design decreases effort needed to achieve an effective shutoff.
• Hand placement areas on bottom bar makes it easier to swing open the tool.
• Color-coded stops provide user confidence in matching up the stops.
• Bottom bar is removable for transport, reducing the carry weight for the operator.
• Aircraft-grade aluminum construction balances high strength with reduced overall weight for better handling.
• Squeeze and release scale marks on the tie-rods give visual cues to help operators open and close the tool at the correct speed, promoting consistent performance and preventing damage to the pipe.

Standard Stops Included for PES6DB
See Related Products below for optional pipe size kit.
