The Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

Klein Tool Model No. VDV501-851

• Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector)_ terminated cables with clearly defined results
• Measure cable length (up to 2,000 feet)
• Test for Open, Short, Miswire or Split-Pair faults
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
• Hub blink mode to identify port location on a hub or a switch

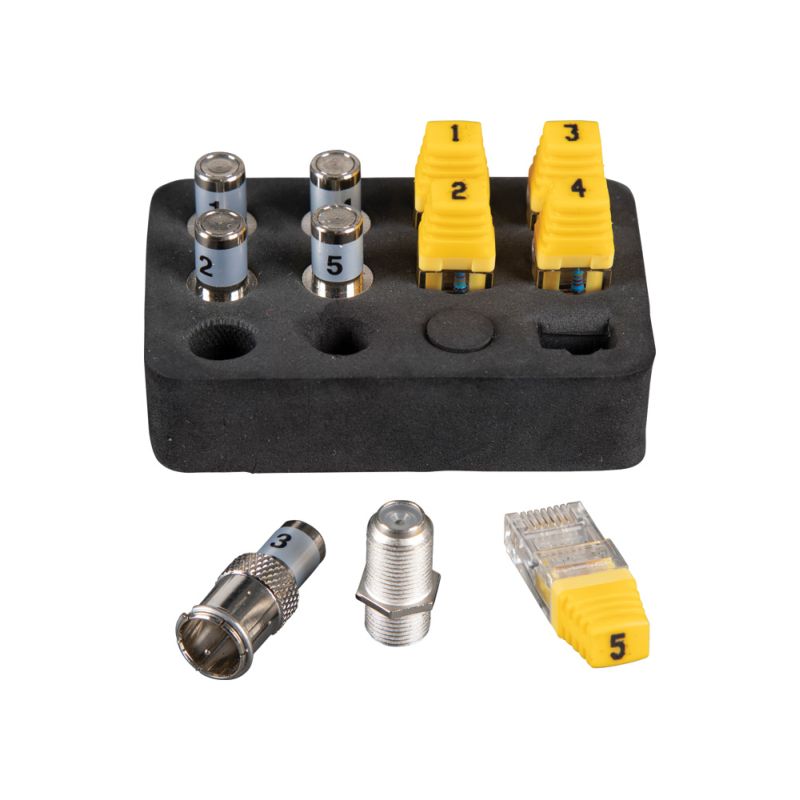

• LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
• Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
• Auto Power-off feature to conserve battery life (9V included)

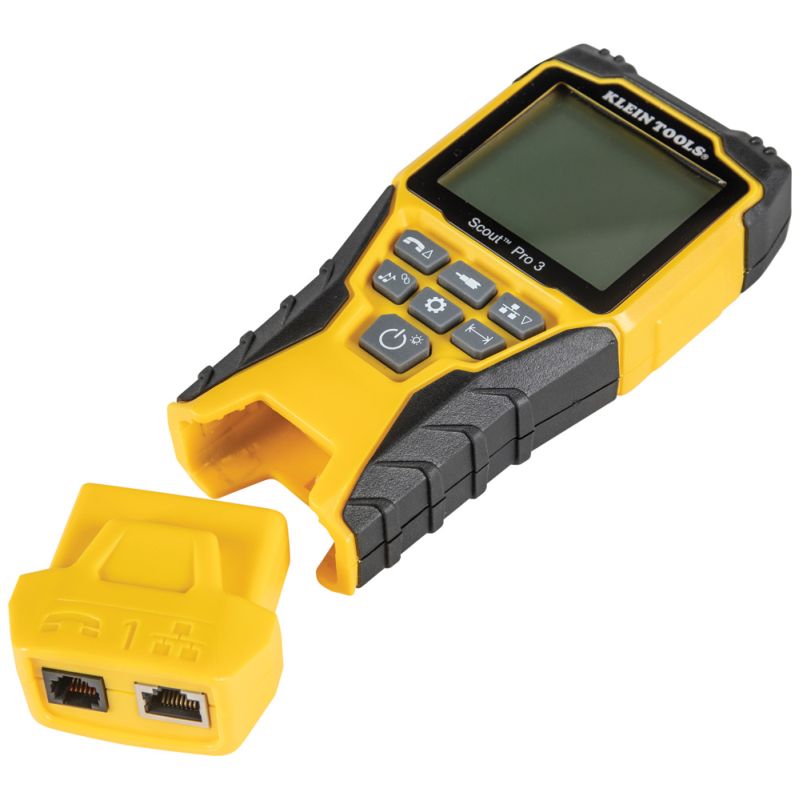

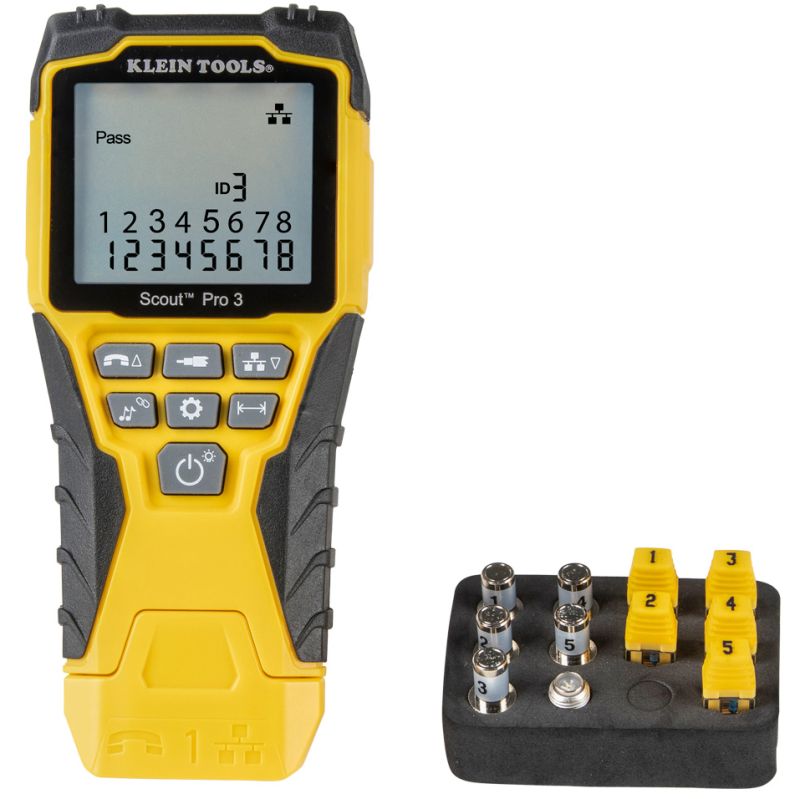

• Kit includes: Scout Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery

Instruction Manual
