Top-quality manufacturing, a safety pressure relief valve, a precision-balanced armature, a double-insulated electric motor and a locking trigger switch.

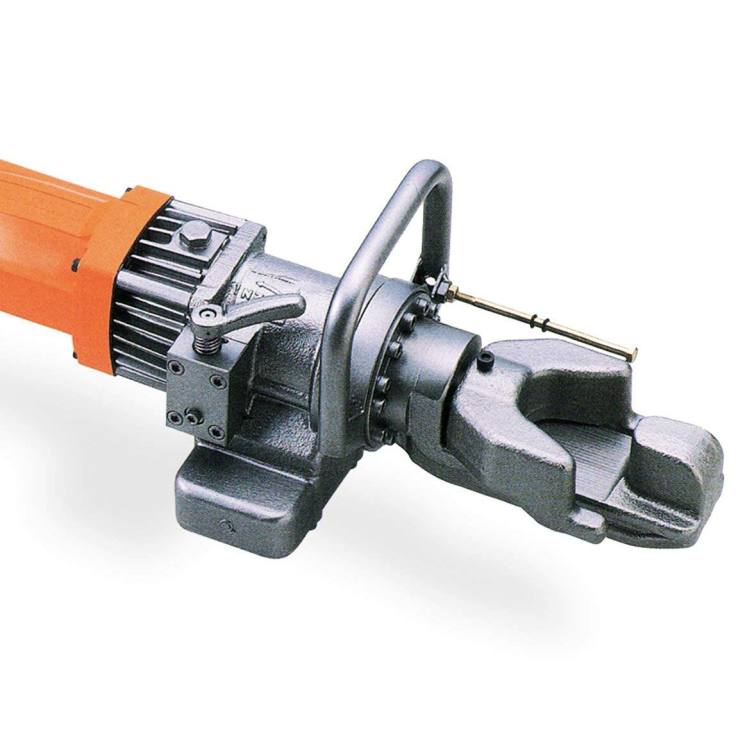

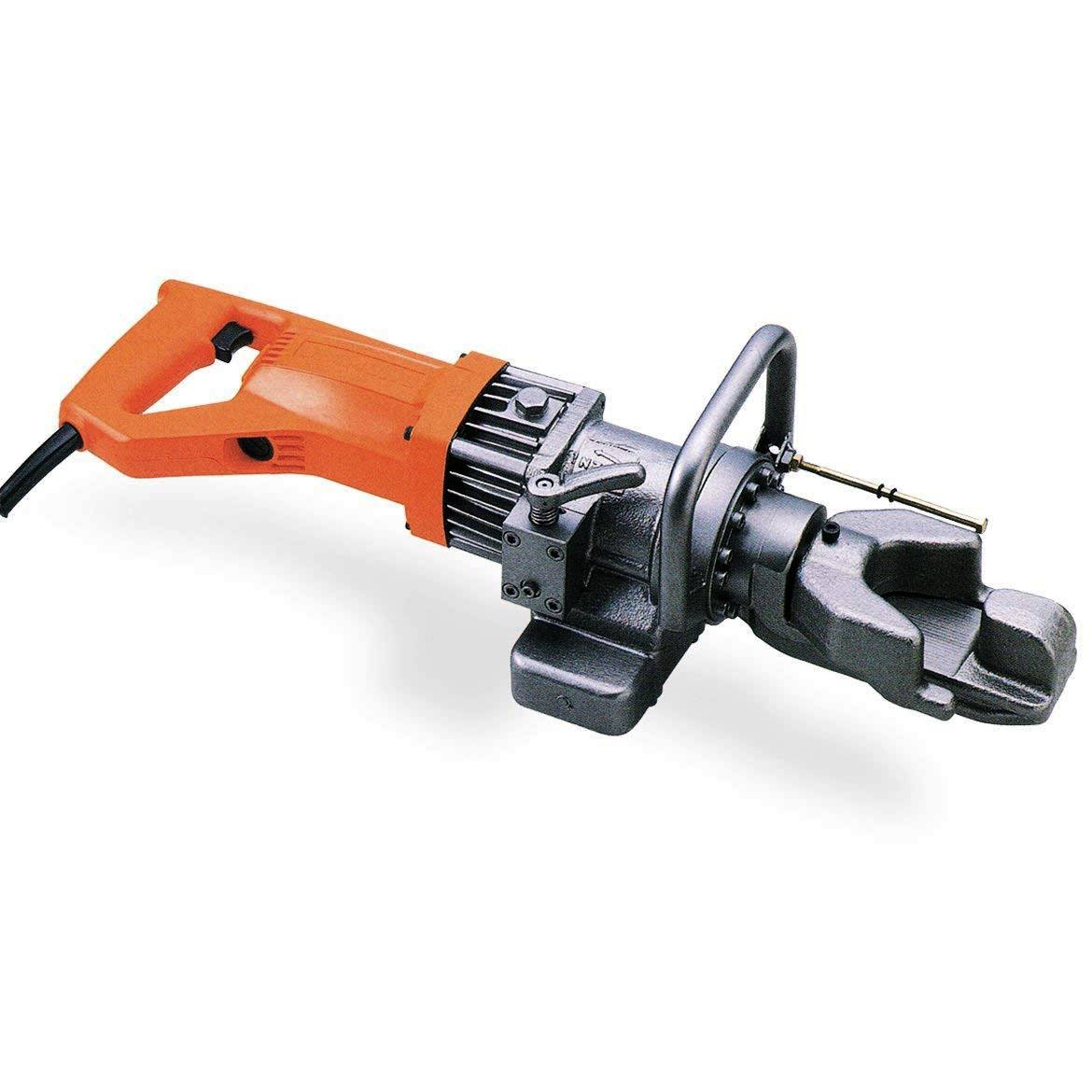

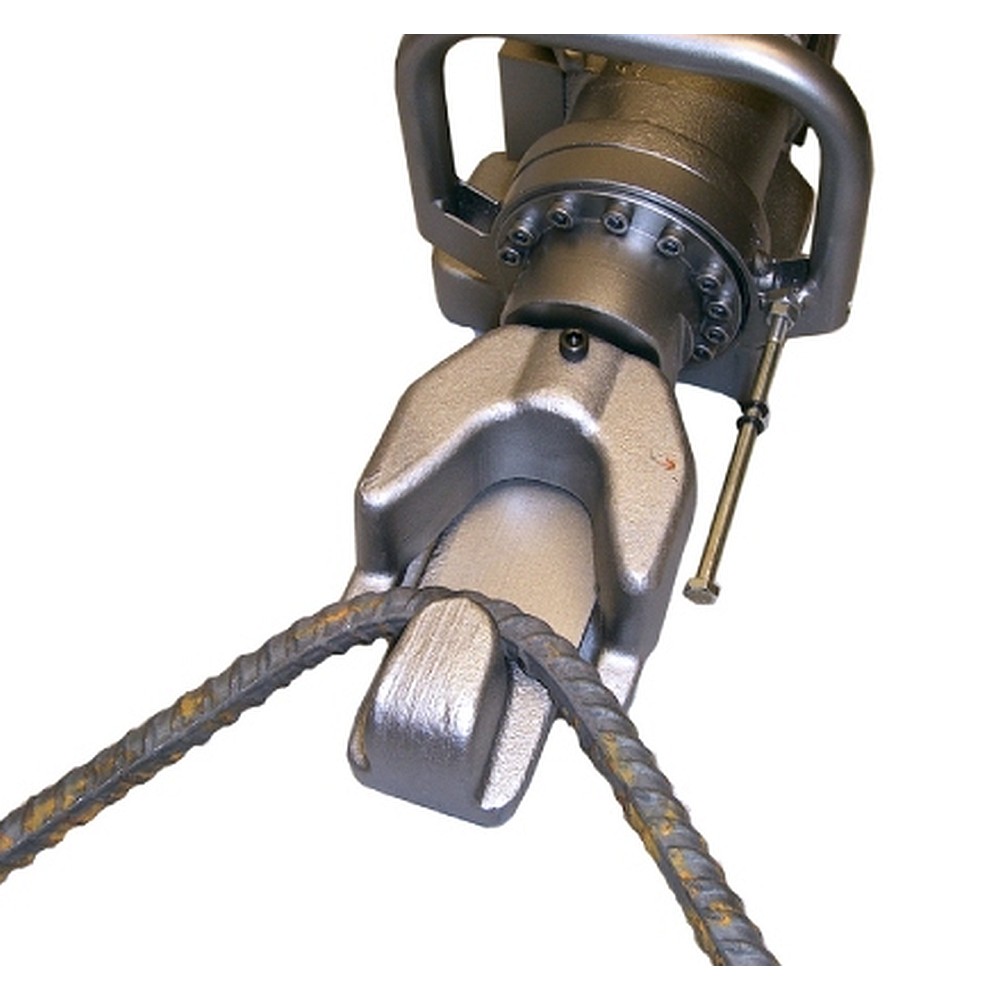

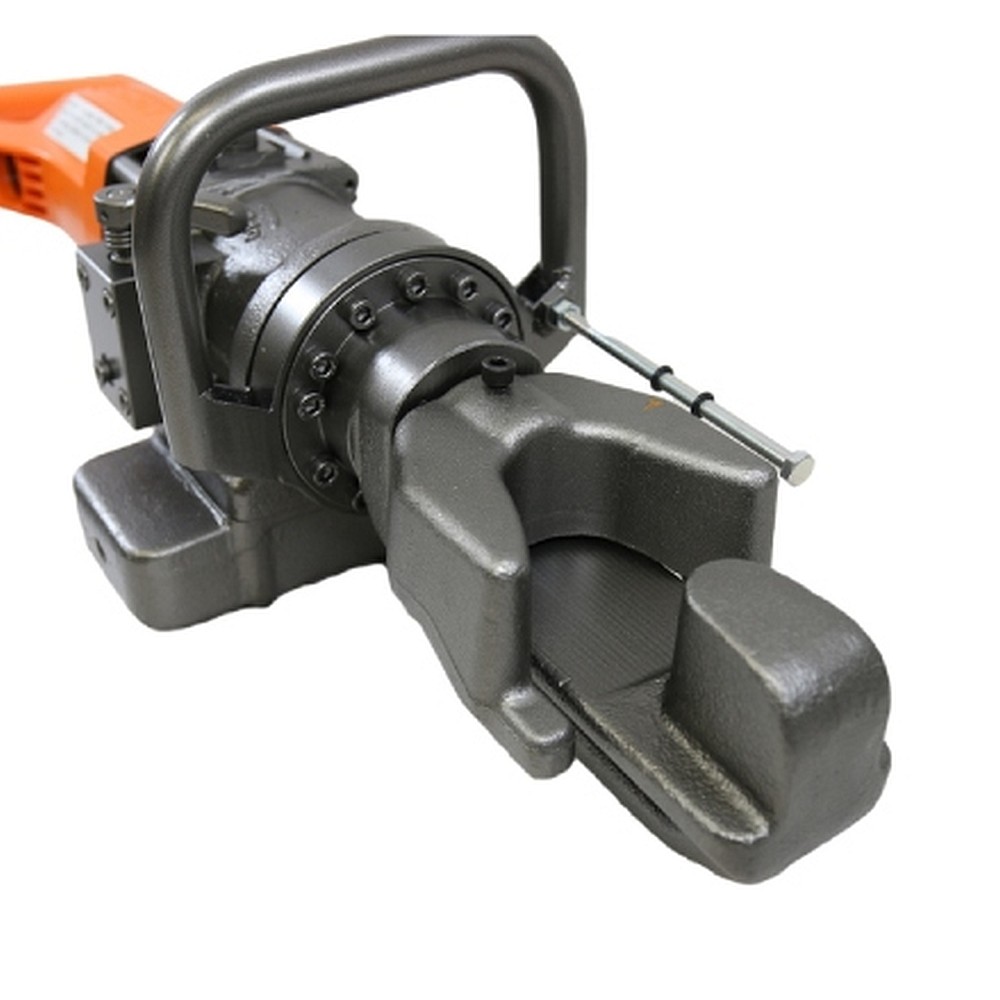

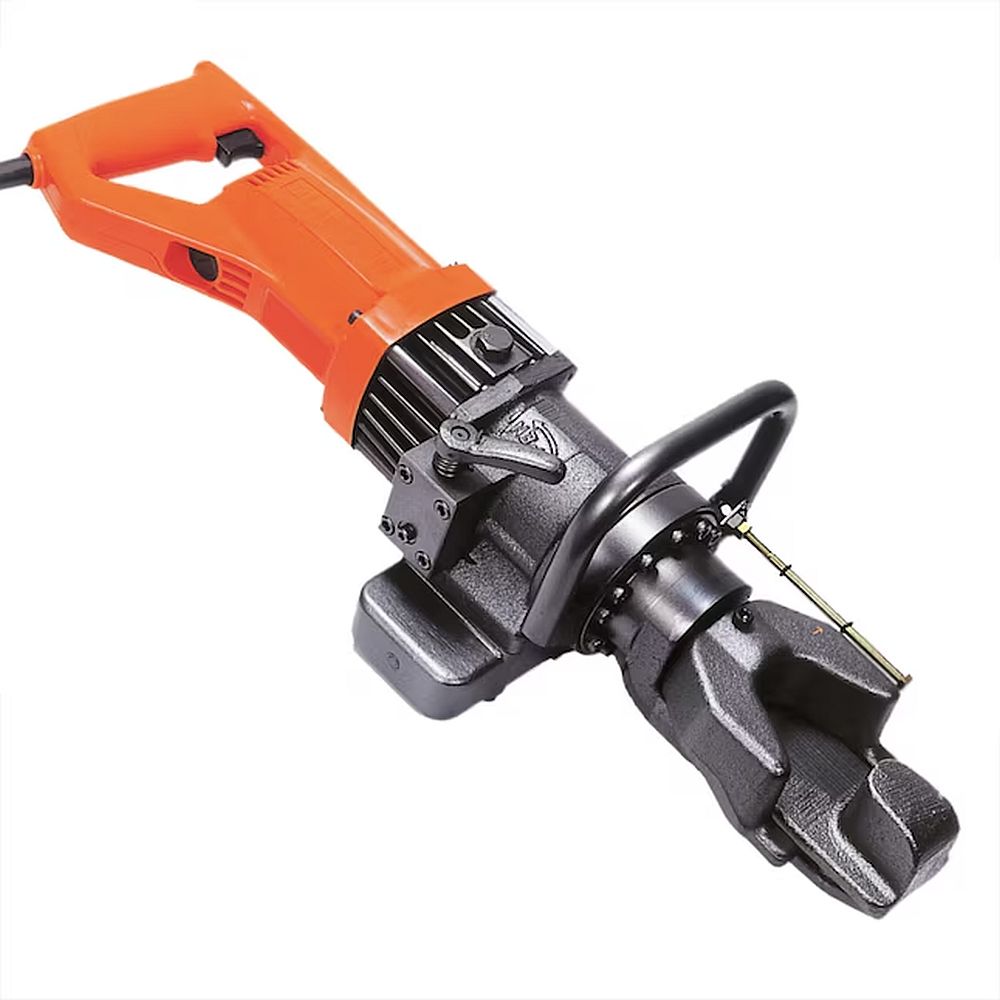

The HB-16W portable heavy-duty electric/hydraulic rebar bender helps save valuable man-hours by bending rebar up to 5/8” (#5) grade 60 from 0-135 degrees in-place at the job site. Other features include a double insulated electric motor and a removable bending guide for repeating the same angle bend. A standard 90 degree bending shoe and collar set make it simple to repeat 90 degree bends without a guide. The removable bending collar increases the bending radius and minimizes rebar breakage, especially on #5 grade 60. This portable electric/hydraulic rebar bender ships complete in a steel carrying case with hydraulic oil and a tool kit. Solves bending applications other tools can't even attempt.

BN Model No. HB-16W

• Bends rebar up to #5 (5/8”) diameter grade 60 from 0-135 degrees in-place at the job site

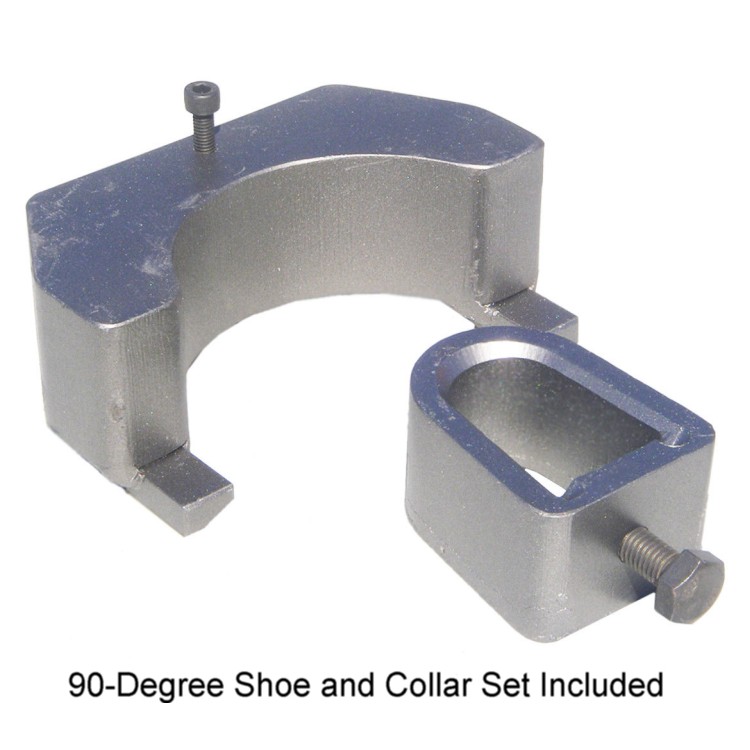

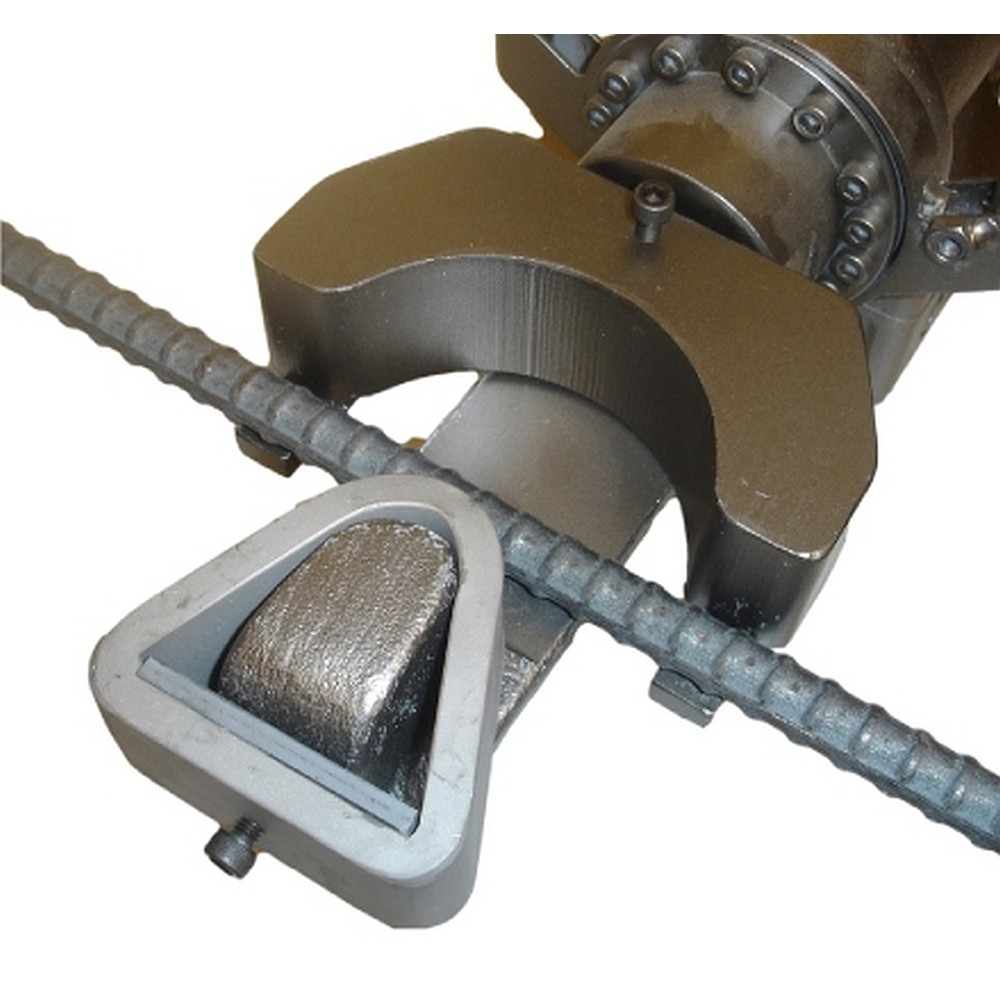

• Includes 90 degree bending shoe and collar set make it simple to repeat 90 degree bends without a guide
• Removable bending guide for repeating the same angle bend
• Includes a steel carrying case with hydraulic oil and a tool kit

Specifications for the HB-16W #5 Rebar Bender

• Maximum Bending Diameter 5/8” #5 Rebar (16mm) - Grade 60
• Bending Angle / Speed 0 - 135 degrees / 8 Seconds
• Power Supply 115V 50/60Hz -10 amps
• Dimensions 22.8” (584mm) x 7.6” (195mm) x 8” (205mm)
