MK Diamond Products MK-100 is a professional grade, wet cutting tile saw with a fully enclosed, fan-cooled, high torque 1-1/2 horsepower motor. The MK-100 rips 20-inch tile, diagonally cuts 14-inch tile, has a 3-3/4 inch depth of cut and a 10 inch blade capacity. Manufactured with a heavy duty, zinc-plated, one-piece steel frame assembly, cast-aluminum support components, and many other unique features, the MK-100 provides unrivaled quality, performance, and value. The MK-100 comes complete with a 10-inch MK-100 diamond blade, fully submersible electric water pump and adjustable rip guide. Comes with a 10-inch MK-100 diamond blade. One-year limited warranty.

Includes:

• 10" Wet Cutting Diamond Blade
• Water Pump
• Rip Guide
• 45 Degree Miter

MK-100 Features:

• Fully enclosed thermally protected, high torque, fan-cooled motor
• Permanently lubricated, dual-sealed, heavy-duty blade shaft bearings
• Multi-position motor post and cutting head allows operator to configure saw for convenient cutting of both large and small tiles
• Built-in water distribution system supplies water to both sides of blade
• Variable height cutting head allows for plunge cuts
• Blade guard accommodates 6" and 8" profile wheels
• Micro V-belt drive for maximum horsepower transfer from motor to blade

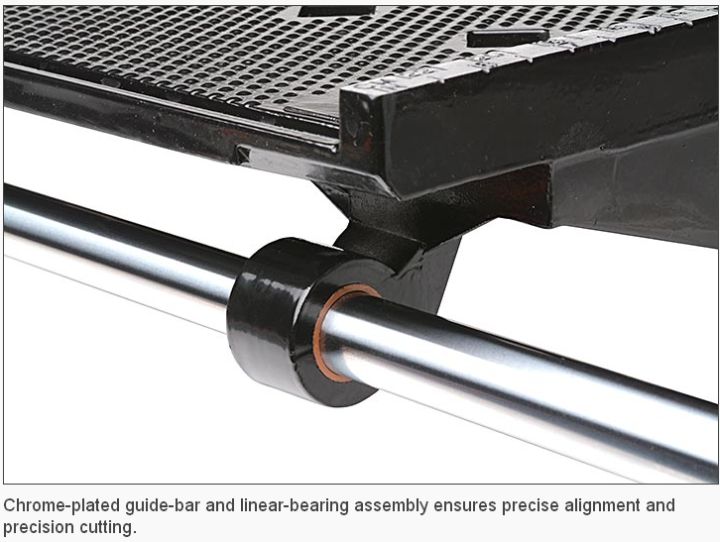

• Linear-Bearing and chrome plated guide-bar assembly ensure precise cutting
• Blade shaft lock for easy blade removal
• One-piece reinforced zinc-plated steel frame
• UL Approved
• Made in the USA
• One-year limited warranty

Users and Parts Manuel
