Tsurumi TD series diaphragm pumps are for sand, sludge, and mud applications are capable of continuous dry operation for seepage dewatering.

The Tsurumi Pump diaphragm pumps features a 2-stage, heavy duty forged gear driven transmission. Often referred to as Mud or Sludge Pumps, diaphragm pumps are designed to pump mud, slurry, sewage and thick liquids that have the ability to flow. Built-in check valve assures self-priming to 20 feet after initial prime. Heavy duty forged gear driven transmission is designed to operate pump at 60 strokes per minute.

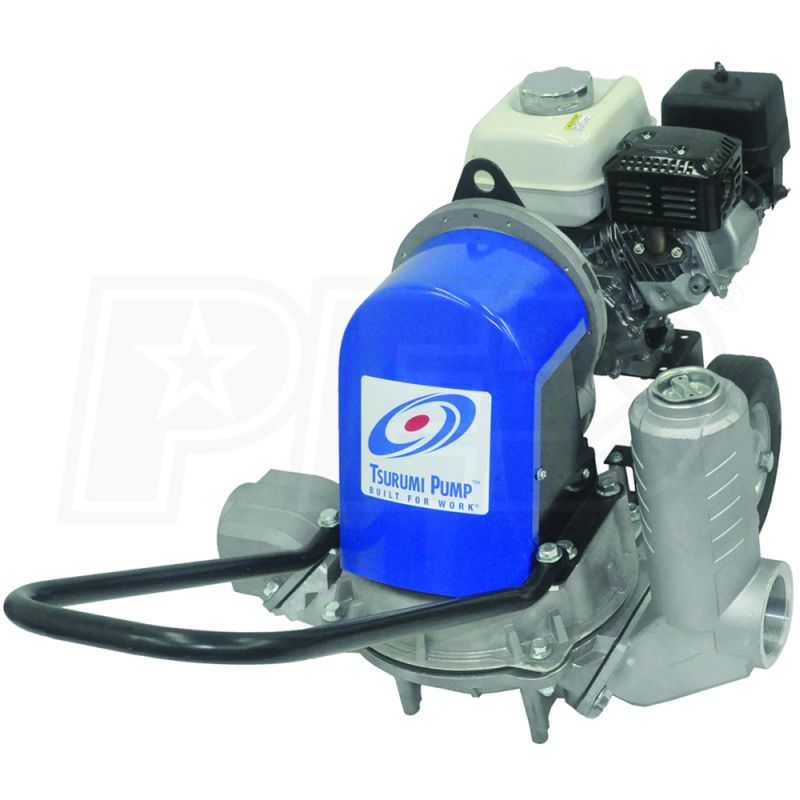

Tsurumi Model No. TD6-300

  • Heavy-duty Honda gasoline engine  with oil sensor delivers high power  from a compact, reliable design.
  • Sand cast aluminum construction for portability and durability
  • Thermoplastic rubber diaphragm
  • 3-inch NPT suction and discharge size
  • 1-5/8 inch diameter solids handling capability
  • Modular component design permits easy maintenance and cleanout
  • Engine driven model: Honda GX120
  • Delivers up to 90GPM
  • Maximum temperature 180˚F

GENERAL DATA
MAX. FLOW: GPH 5,000 GPH/90 GPM
MAX. HEAD: ft 25'
MAX. SUCTION HEAD: ft 20''
DISCHARGE SIZE 3" NPT
WEIGHT 175 lbs
DEMENSIONS 43.4 " L x 26.4 " W x 23.4 " H
